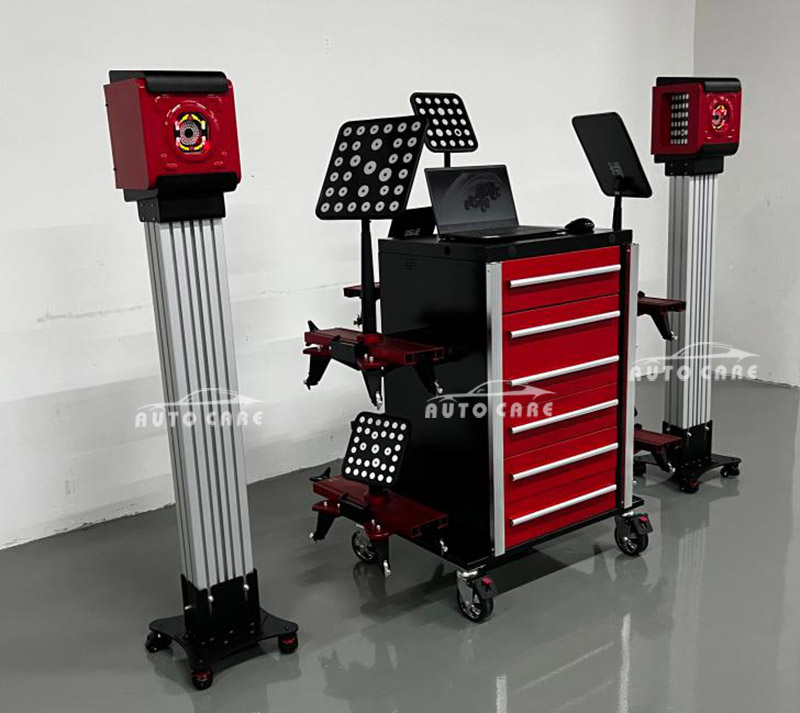

AT-100: 3D Truck Wheel Alignment

Description


Specification for 3D Truck Wheel Alignment:


Type

3D

Display precision

1’

The Total Toe

2’

Camber

2’

Caster

6’

Kingpin Inclination

6’

Thrust

2’

Set Back

2’

Wheel Deviation

2mm

Axis Deviation

2mm


Measurement principle:
Using the geometric center of the car as the positioning reference, optical imaging technology (industrial camera) is used to obtain the image of the measured target. After fast image processing and graphic recognition algorithm; getting the size, position and structure from the captured image. Finally calculate the position angle relationship between the wheels and axles and the vehicle center line.

Machine functions:
 1. 3D cameras alignment-Based on the vehicles and not affected    by the platform.
 2. Measurement system-equipped with three cameras and four target disk, supplying  revolutionary measurement mode.
 3. Target disk-no electronic components and connection lines on the target disk, so the wheel alignment will have durable working.
4. Equipment Calibration - have calibrated before shipping. After installation, can use machine directly.
5. Measurement progress-no need to compensate for steel ring , the precise eccentric compensation will be done just once pulling or pushing the car back and forth.
6. Software system-Easy to operate, complete conventional basic parameters within two minutes ,significantly faster than conventional aligners.
7. Daily Maintenance-Easily maintenance and free vehicle data upgrade forever.

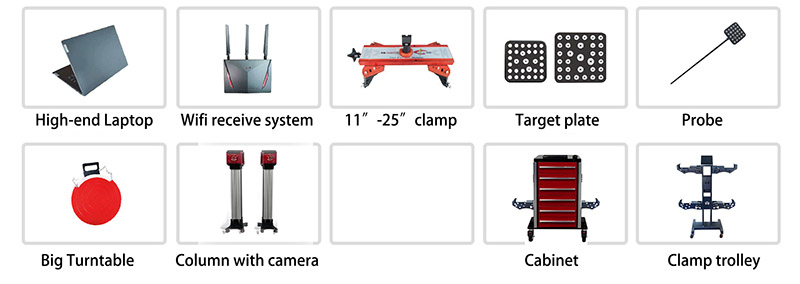

Packing List:
(1) Movable Cabinet*1
(2) High-end Laptop*1
(3) Camera*3
(4) Movable Column*2
(5) Wifi receiving System*1
(6) Target *6
(7) Clamp *6
(8) Big Turn Table*4
(9) Probe*1
(10) Clamp Trolley*1
(11) Safety Cable*6
