AG-600: Work with Two Post/Scissor Lift

Description


Specification for AUTOCARE 3D Wheel Alignment:



Measuring Item

Accuracy of measurement

Measuring range

Display precision

0.1mm/0.01°

------

The Total TOE

± 0.01°

±40°

Camber

±0.01°

±45°

Caster

±0.02°

±45°

S.A.I

±0.02°

±45°

Thrust

±0.01°

±40°

Set Back

±0.01°

±40°

The Max. Steering

±0.02°

±50°

Track width

±2mm

1219mm-2438mm

Wheelbase

±2mm

2006mm-4572mm

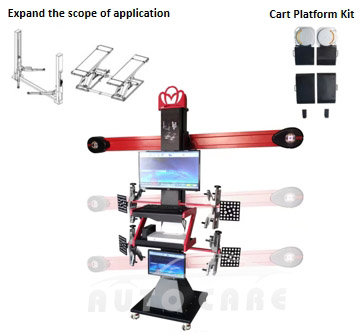

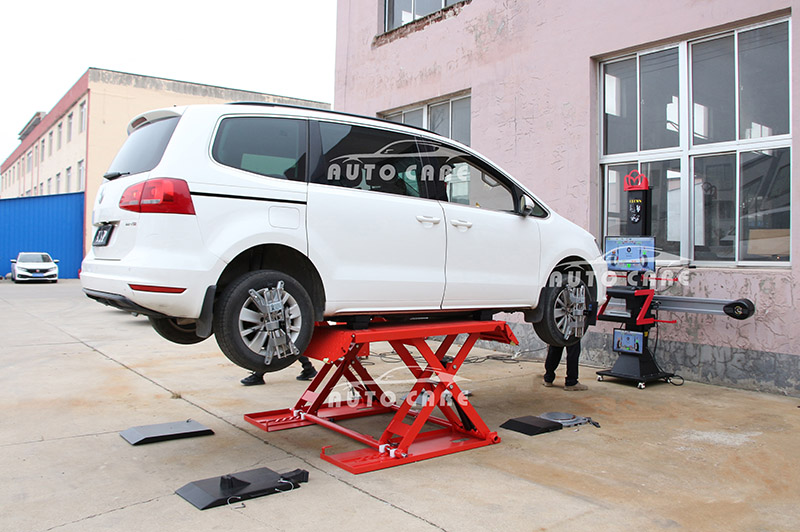

1. Especially suitable for two post lift, small/mobile scissor lift.
2. Military level target disk design, suitable for use in narrow spaces less than 2.8 meters.
3. Repeat measurement accuracy is ±0.01, which be a world’s leading level.
4. Measurement Angle: Toe, Camber, Caster, S.A.I, Thrust Angle, Setback Angle, Max turning angel, Wheel tread, Wheelbase, Wheel rolling redius.
5. Humanized software design, animation video can be used to help technician more quickly complete the oeration.
6. Automatic lifting and Manual lifting, two models for selection. More convenient to work with different height of lifters.
7. Exceed 20,000 data base around the world can with a lift time update service
8. 5million high definition Johnbean camera: it can also assure accurate alignment measurement when target plates get smaller.
9. Double display LCDs can make sure the operator clear recognize the data on the screen in any angle and condition during opeation, thus improving the working efficiency.
10. Movable basement is more convenient to work.

AG-600 Packing List
(1) 32” & 19” Double Screens
(2) Host Computer*1
(3) Camera with lifting beam
(4) Iron Pillar
(5) Target Plate*4
(6) Clamp & Hanger*4
(7) Turn Table*2
(8) Wedge-shaped pad*2
(9) HP Printer*1
(10) Brake Lock*1
(11) Steering Wheel Lock*1
(12) Cart Platform Kit*1
(13) Operation Video & Manual *1
