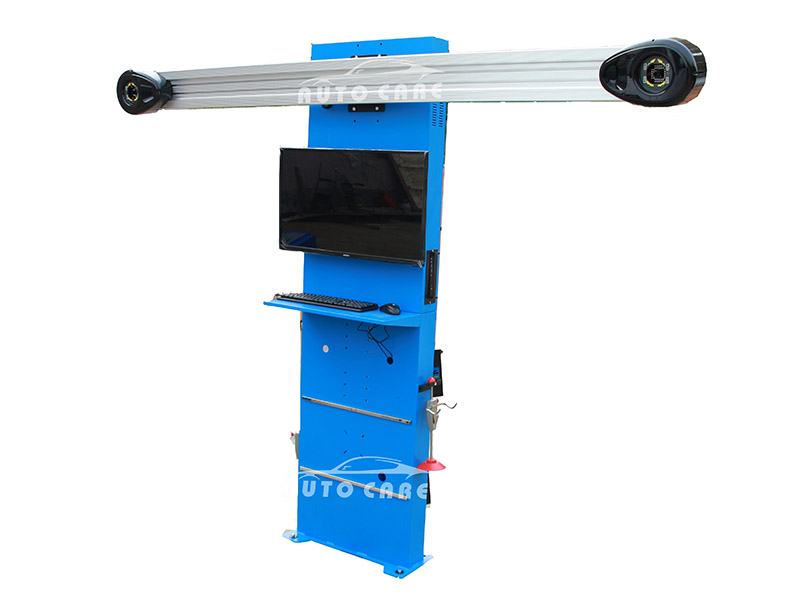

Specification for AUTOCARE 3D Wheel Alignment
|
Measuring Item
|
Accuracy of measurement
|
Measuring range
|
|
Display precision
|
0.1mm/0.01°
|
------
|
|
The Total TOE
|
± 0.01°
|
±40°
|
|
Camber
|
±0.01°
|
±45°
|
|
Caster
|
±0.02°
|
±45°
|
|
S.A.I
|
±0.02°
|
±45°
|
|
Thrust
|
±0.01°
|
±40°
|
|
Set Back
|
±0.01°
|
±40°
|
|
The Max. Steering
|
±0.02°
|
±50°
|
|
Track width
|
±2mm
|
1219mm-2438mm
|
|
Wheelbase
|
±2mm
|
2006mm-4572mm
|
1. With Johnbean Pro42 advanced operation system.
2. The fifth generation HD high-precision camera is used with the new generation of target disk.
3. Which raises 20 times faster for data reading process.
4. The third generation of wheel alignment system improves the running stability by 50% and the running speed by 50%.
5. Self-centering rim clamp and standard target plate make installation faster
6. Short Bay Imaging Aligner can ensure that the camera can still operate normally when the installation distance between the camera beam and center of the turntable is 68.5 inches minimum.
7. The new generation of user experience interface is more convenient, concise and user-friendly.
8. It has the most practical wheel alignment auxiliary function: body size and enhanced EZ-Toe function
9. The body size can accurately diagnosing the body and chassis problems through real-time dynamic track width and wheelbase measurement
10. Large size turntable equipped with two-way rubber knife which fully avoid bad toe-in side slip and effectively improve the accuracy of measurement and repetition.

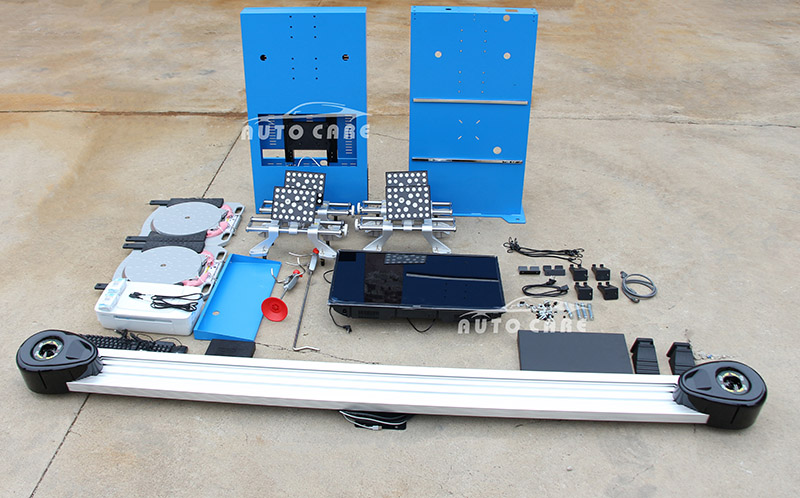

Packing List
(1) 32” Main Screens*1
(2) Host Computer*1
(3) 2HD Camera with fixed beam
(4) Iron Pillar
(5) Target Plate*4
(6) Clamp & Hanger*4
(7) Turn Table*2
(8) Wedge-shaped pad*2
(9) HP Printer*1
(10) Brake Lock*1
(11) Steering Wheel Lock*1
(12) Manual*1
(13) Installation & Operation Video
